Showing all 10 results
Material: Mono crystalline Silicon
Color: Customized Color
Cell size mm: 182mmx182mm, 182mmx91mm
Panel Dimensions: 1350*765*11mm, 1735*1185*11mm, customized
Operating Temperature: -40~+85°C
Maximum fuse rating: 30A
Max-System Voltage (VDC): 1500V
Temperature coefficients of Pmax: -0.29%/°C
Temperature Coefficient of Voc: -0.25%/°C
Temperature Coefficient of Isc: 0.045%/°C
Application:BIPV Facade
Material: Mono crystalline Silicon
Color: Customized Color
Cell size mm: 182mmx182mm, 182mmx91mm
Panel Dimensions: 1350*765*11mm, 1735*1185*11mm, customized
Operating Temperature: -40~+85°C
Maximum fuse rating: 30A
Max-System Voltage (VDC): 1500V
Temperature coefficients of Pmax: -0.29%/°C
Temperature Coefficient of Voc: -0.25%/°C
Temperature Coefficient of Isc: 0.045%/°C
Application: BIPV Facade
Material: Mono crystalline Silicon
Color: Customized Color
Cell size mm: 182mmx182mm, 182mmx91mm
Panel Dimensions: 1350*765*11mm, 1735*1185*11mm, customized
Operating Temperature: -40~+85°C
Maximum fuse rating: 30A
Max-System Voltage (VDC): 1500V
Temperature coefficients of Pmax: -0.29%/°C
Temperature Coefficient of Voc: -0.25%/°C
Temperature Coefficient of Isc: 0.045%/°C
Application:BIPV Facade
Material: Mono crystalline Silicon
Cell size mm: 182mmx182mm, 182mmx91mm
Panel Dimensions: 1350*765*11mm, 1735*1185*11mm, customized
Operating Temperature: -40~+85°C
Maximum fuse rating: 30A
Max-System Voltage (VDC): 1500V
Temperature coefficients of Pmax: -0.29%/°C
Temperature Coefficient of Voc: -0.25%/°C
Temperature Coefficient of Isc: 0.045%/°C
Junction box protection level: IP68/Split/MC4
Application: BIPV Facade
Material: Mono crystalline Silicon
Type: Half Cell, Double-glass, HJT
Color: Customized Color
Cell size mm: 91*182
Panel Dimensions: 1163*400*7.4
Operating Temperature: -40~+85°C
Max. Series Fuse: 15A
Power Tolerance(%): 0~3%
Max-System Voltage (VDC): 600V/1000V
Temperature coefficients of Pmax: 0.4%/°C
Temperature Coefficient of Voc: -0.30%/°C
Temperature Coefficient of Isc: +0.06%/°C
Application: BIPV Facade
Cell size mm: 158.75mmx158.75mm
Panel Dimensions: 750x750x19mm, customized
Type: PERC, Double-glass, All Black
Glass Thickness: 8+10mm
PM: 80Wp
Vmp: 9.22V
Imp: 8.67A
Voc: 10.84 V
Isc: 9.13A
Power Tolerance: 0~+3%
Size: 750x750x19mm
Material: Mono crystalline Silicon
Panel efficiency: 17.3%
Cell size mm: 182mmx182mm, 182mmx91mm
Panel Dimensions: 630*480mm, customized
Cell Type: 182*91mm Half-Cell, N-TYPE
Frame: Frameless
Color: Black,Red, Green
Connector: MC4 Compatible
Junction box: IP67
Individual package size: 63X48X3cm
Gross weight per item: 7.5kg
Application: BIPV Facade
Power range: 445~465w
Power tolerance: 0~+3%
Highest component conversion efficiency: 23.3%
First-year decline: ≤ 1.0%
Attenuation over the years: ≤ 0.4%
Application: No main grille, no harpoon, facilitating high-end zero-carbon buildings
Warranty: 15 years
Dimensions of the component (LxWxH): 1762x1134x30mm
Solar cells: N-type monocrystalline silicon
Number of battery cells: 108 (6*18)
The frame type: Silver-white or black anodized aluminium profiles
The glass thickness: 1.6+1.6mm
Cable length vertical installation: (+)350 mm, (-)250 mm; Or customized;
Cable cross-sectional area (IEC/UL): 4 mm² / 12 AWG
Connector type (IEC/UL): HCB40 (Standard)/MC4-EVO2A (optional)
The component weighs: 21.5 kilograms
Power range: 695~720w
Power tolerance: 0~+3%
Highest component conversion efficiency: 23.2%
First-year decline: ≤ 1.0%
Attenuation over the years: ≤0.4%
Application: Large-scale ground-mounted power stations and distributed power stations
Warranty: 15 years
Dimensions of the component (LxWxH): 2384x1303x33 mm
Solar cells: N-type monocrystalline silicon
Number of battery cells: 132 (6*22)
The frame type: silver-white anodized aluminum profile
The glass thickness: 2.0+ 2.0mm
Cable length vertical installation: (+)350 mm, (-)280 mm; Or customized;
Cable cross-sectional area (IEC/UL) 4 mm² / 12 AWG
Connector type (IEC/UL): HCB40 (Standard)/MC4-EVO2A (optional)
The component weighs: 38 kilograms

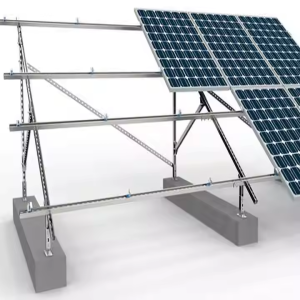

Material: Steel or Aluminum
Wind load: 60 m/s
Snow load: 1.4KN/m2
Exterior treatment: Anodized
Installation site: Ground mounting structure, with the foundation being concrete piers or ground piles.
Lifetime: 30 years
